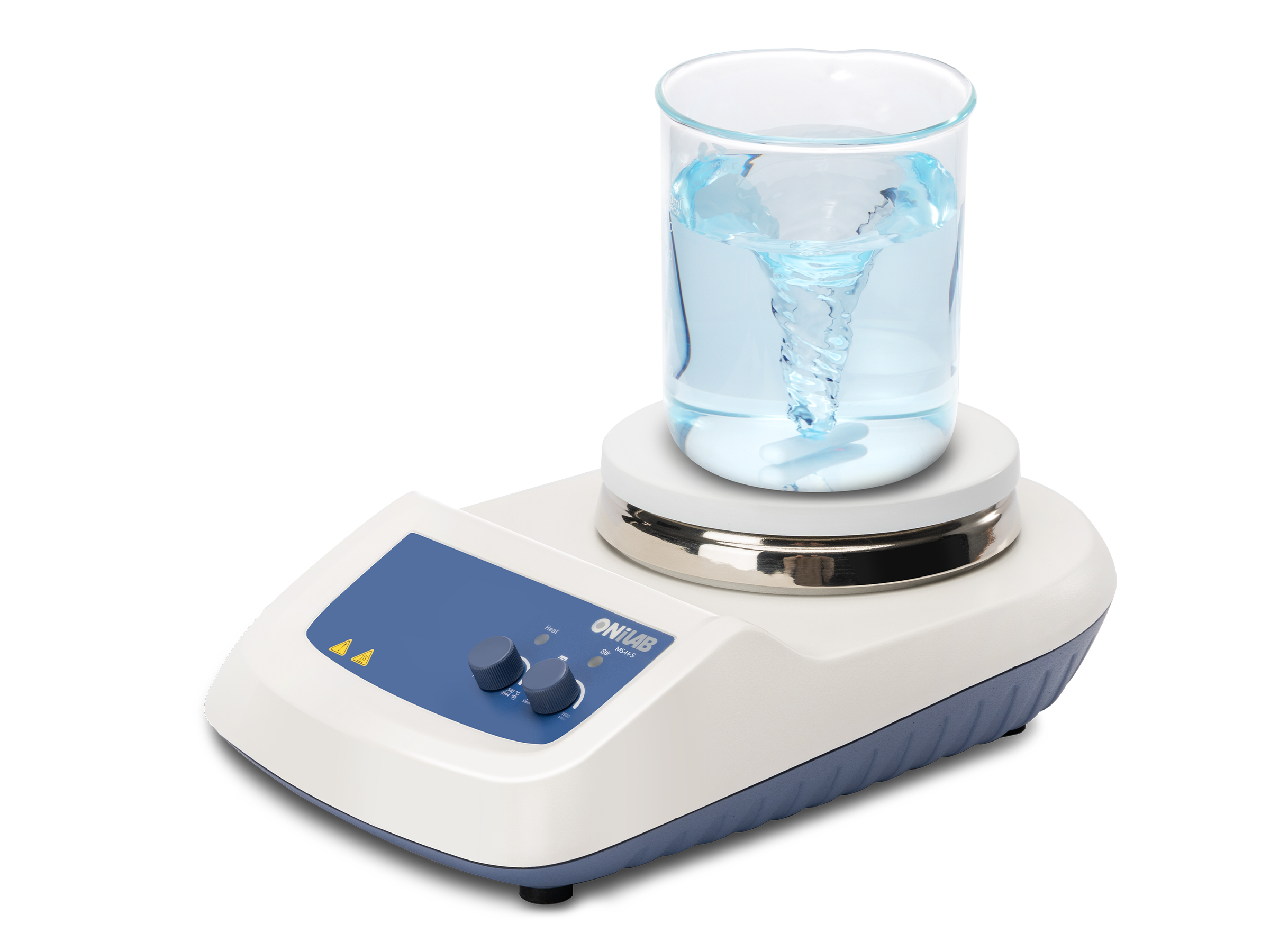

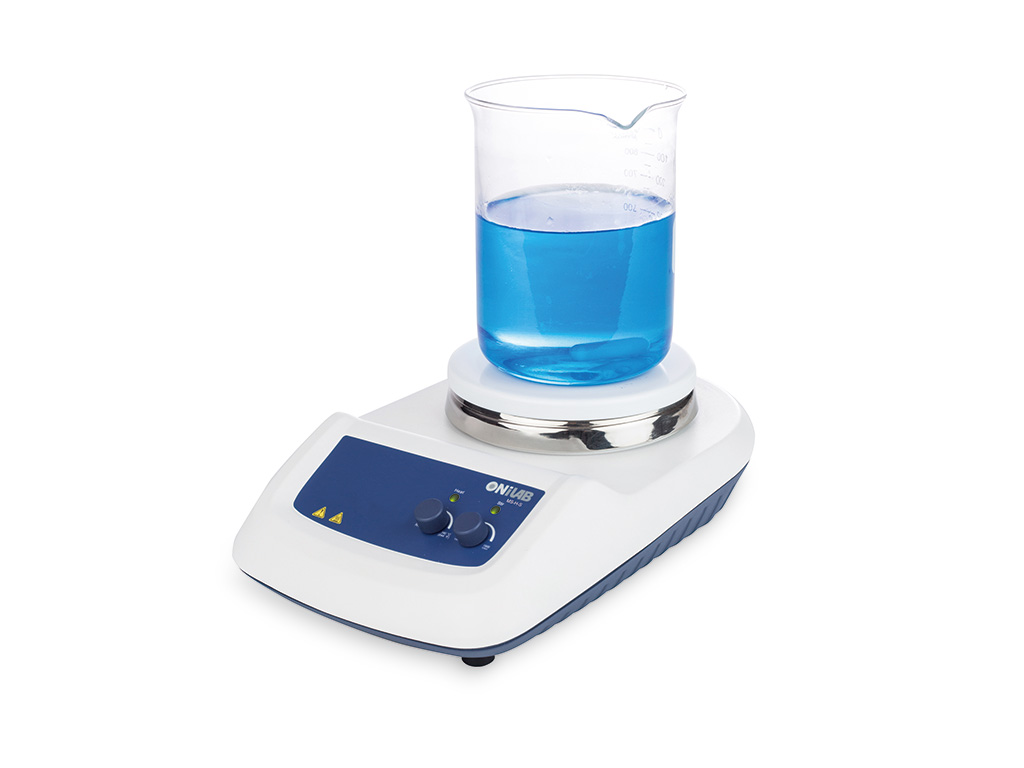

MS-H-S
/Magnetic Hotplate Stirrers/
Key Features
• Maintenance free brushless DC motor
• Max. temperature to 340°C
• Stirring speed up to 1500 rpm
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Safety circuits provide overheating protection
• A wide variety of accessories are available
• Maintenance free brushless DC motor
• Max. temperature to 340°C
• Stirring speed up to 1500 rpm
• Stainless steel work plate with ceramic coating provides good chemical-resistant performance
• Safety circuits provide overheating protection
• A wide variety of accessories are available
Parameter
/Magnetic Hotplate Stirrers/
| Specifications | MS-H-S |
| Work plate dimension | φ135mm(5 inch) |
| Work plate material | stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 550W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range |
0-1500rpm resolution±1rpm |
| Speed display | Scale |
| Temperature display | Scale |
| Heating temperature range | Room temp.-340°C |
| Over temperature protection | 350°C |
| Temperature display accuracy | ±0.5°C |
| Protection class | IP42 |
| Dimension[WxDxH] | 160×280×85mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
Number and accessory
/Magnetic Hotplate Stirrers/
| Cat. No. | P/N | Descriptions | Power supply |
| 8050221010 | MS-H-S | Classic Hotplate Magnetic Stirrer，stainless steel with ceramic coated hotplate，heating temperature up to 340°C | USA plug,100V-120V/50Hz/60Hz |
| Cn plug,200V-240V/50Hz/60Hz | |||
| Euro plug,200V-240V/50Hz/60Hz | |||
| UK plug,200V-240V/50Hz/60Hz |
| Cat. No. | P/N | Descriptions |
| 18900001 | MS 135.1 | Blue carrying plate，suitable for hotplate，used with MS135.2-7, suitable for MS-H-Pro+ |
| 18900065 | MS 135.8 | Blue Fixed ring，suitable for hotplate，used with MS135.2-7,suitable for MS-H-Pro+ |
| 18900002 | MS 135.2 | Red quarter pie, 11 holes，4 ml reaction vessel，Ø15.2mm，20mm depth, used with MS135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro, MS7-H550-S |
| 18900003 | MS 135.3 | Purple quarter pie, 4 holes，20 ml reaction vessel，Ø28mm，24mm depth, used with MS135.1 and MS 135.8 ,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18900004 | MS 135.4 | Blue quarter pie, 4 holes, 30 ml reaction vessel，Ø28mm，30mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18900005 | MS 135.5 | Black quarter pie, 4 holes, 40 ml reaction vessel，Ø28mm，43mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18900048 | MS 135.6 | Green quarter pie，6 holes, 8ml reaction vessel，Ø17.8mm，26mm depth, used with MS135.1 and MS135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18900049 | MS 135.7 | Golden quarter pie，4 holes, 16ml reaction vessel，Ø21.6mm，31.7mm depth, used with MS 135.1 and MS 135.8,suitable for MS-H-Pro+,MS-H550-Pro and MS7-H550-S |
| 18101007 | Reaction block for 100ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101008 | Reaction block for 250ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18101009 | Reaction block for 500ml round bottom flask (one flask capacity), suitable for MS-H-Pro+ and MS-H280-Pro | |
| 18900006 | MSBAR10 | Stirrer bar（10mm x 6mm），1pc/pk |
| 18900007 | MSBAR15 | Stirrer bar（15mm x 8mm），1pc/pk |
| 18900008 | MSBAR20 | Stirrer bar（20mm x 8mm），1pc/pk |
| 18900009 | MSBAR25 | Stirrer bar（25mm x 8mm），1pc/pk |
| 12500005 | MSBAR30 | Stirrer bar（30mm x 6mm），1pc/pk |
| 18900011 | MSBAR40 | Stirrer bar（40mm x 8mm），1pc/pk |
| 12500004 | MSBAR50 | Stirrer bar（50mm x 8mm），1pc/pk |
| 18900013 | MSBAR65 | Stirrer bar（65mm x 8mm），1pc/pk |
| 18900014 | MSBAR80 | Stirrer bar（80mm x 13mm)，1pc/pk |
| 18900016 | PT1000-A | Temperature sensor for digital hotplate models,length of 230mm, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro |
| 18900136 | PT1000-B | Temperature sensor with glass coated, length of 230mm, used for digital hotplate models, used for MS-H-Pro +,MS-H-ProT, MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro |
| 18900084 | PT1000-C | Temperature sensor, length of 100mm, used for digital hotplate models, used for MS-H-Pro +, MS-H-ProT,MS7-H550-Pro, MS7-H550-S, MS-H280-Pro and MS-H380-Pro |
| 18900017 | Support clamp of PT1000 | |
| 18900293 | Set includs support clamp of PT1000 and PT1000 Temperature sensor | |
| 18900018 | F100 | F100 protective cover，for non-hotplate model,use with MS-S |
| 18900019 | F101 | F101 protective cover，for hotplate model,use with MS-H-Pro + and MS-H-S |
