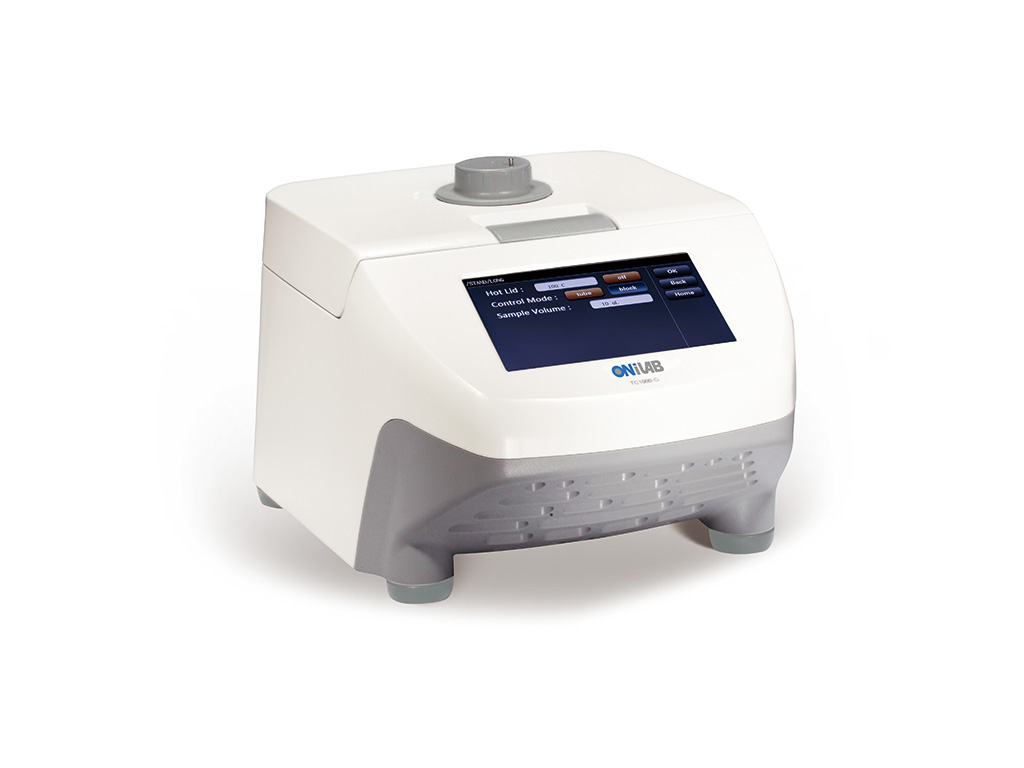

TC1000-G
/Thermal Cyclers/

      Key Features

  • Intuitive 7” colour LCD touch screen for real time monitoring of experimental temperature and easy operation with both chinese and english version interface
  • Six high-performance Peltier structures for temperature control accuracy.
  • Touchdown PCR and long PCR functions can be performed.
  • Superior temperature control system with both tube mode/block mode options.
  • Adjustable thermal lid with anti-sample evaporation function.
  • Power-ON self-test function for quick internal diagnosis.
  • Time saving ultra wide temperature gradient up to 42°C for optimization.
  • Power OFF protection with automatic program recovery.
  • Multiple program storage capacity.
  • Hot lid automatic shut-off function if the module temperature is <30°C.
  • Compatible with most universal PCR tubes and 96-well PCR plates.

Parameter
/Thermal Cyclers/
Specifications TC1000-G
Sample Capacity 96X0.2mL PCR tube,  8X12 PCR plate or 96 well plate
Heating Temperature Range 4-105℃
Lid Temperature Range 30-110℃
Temperature Display Accuracy ±0.1℃
Temperature Control Accuracy [at 55℃] ±0.3℃
Temperature uniformity[at 55℃] <0.3℃
Max. Heating/Cooling Rate 3℃Sec
Gradient Temperature Setting Range 30-99℃
Gradient Range 1-42℃
Adapter block material aluminum
Display 7” LCD 800x480
Input Touch panel
User defined file system Max. 30 segments 99 cycles  max. 16 folder and 16 files each folder
Power off protection Yes
Power Supply 100-120V/200-240V,50/60Hz
Dimension [D×W×H]
( without the heating block )
280x370x250 mm
Weight 11kg

Number and accessory
/Thermal Cyclers/
Cat. No. P/N Descriptions Power supply
5054102300 TC1000-G Gradient Thermocycler USA plug,100V-120V/50Hz/60Hz
Cn plug, 200V-240V/50Hz/60Hz
Euro plug, 200V-240V/50Hz/60Hz
UK plug, 200V-240V/50Hz/60Hz
