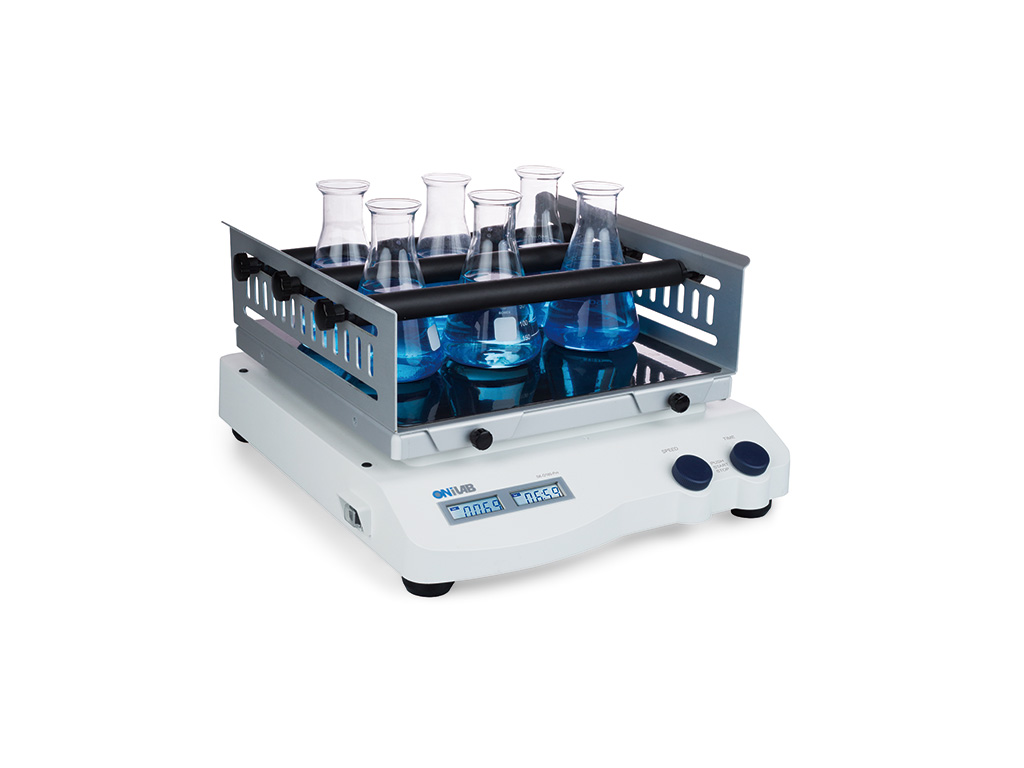

SK-O180-Pro
/Shakers/

Key Features

  •    Max. load capacity  is 7.5kg(O330) and 2.5kg(O180) with platform
  •    Double LCDs for independent display of time and speed
  •    Used with a wide variety of accessories
  •    Maintenance- free brushless DC motor
  •    Over speed detection and protection
  •    Remote function provides PC control and data transmission
Parameter
/Shakers/
Specifications SK-O180-Pro
 Orbital diameter 4mm
Max. load capacity (with platform) 2.5kg
Motor type Brushless DC motor
Motor input power 28W
Motor output power 15W
Power 30W
Time settings range 1min-19h59min
Speed range 100-800rpm
Speed display LCD
Timer display LCD
Voltage 100-240V,50/60Hz
Protection class IP21
Dimension [W x D x H] 300×340×100mm
Weight 8.1kg
Permissible ambient temperature and humidity 5-40°C 80%RH
Data connector RS232

Number and accessory
/Shakers/
Cat. No. P/N Descriptions Power supply
8052210100 SK-O180-Pro Digital Orbital Shaker (2.5Kg) with SK 180.1 Universal attachment(package seperately) USA plug,100V-220V/50Hz/60Hz
Cn plug,100V-220V/50Hz/60Hz
Euro plug,100V-220V/50Hz/60Hz
UK plug,100V-220V/50Hz/60Hz

Cat. No. P/N Descriptions
18900025 SK180.1 SK 180.1 Universal attachment with 3 bars
18900026 SK180.2 SK180.2 Fixing clip attachment
18900038 SK180.3 SK180.3 Lengthways roller attachment
18900185 SK180.4 SK180.4 Dish Attachment with non-slip mat
18900200 SK180.5 SK180.5 Dish Attachment with non-slip mat 200*300mm
18900326 SK180.6 SK180.6 Dish Attachment with non-slip mat 280*280mm
18900037 　 Bar for SK180.1 Universal attachment，black
18900029 SK180.2.1 /SK330.2.1 Fixing clip for flask volume 25 ml
18900030 SK180.2.2 /SK330.2.2 Fixing clip for flask volume 50 ml
18900031 SK180.2.3 /SK330.2.3 Fixing clip for flask volume 100 ml
18900032 SK180.2.4 /SK330.2.4 Fixing clip for flask volume 200/250 ml
18900033 SK180.2.5 /SK330.2.5 Fixing clip for flask volume 500 ml
18900280 　 Connect sticks for double dishes shaker 1/pK
