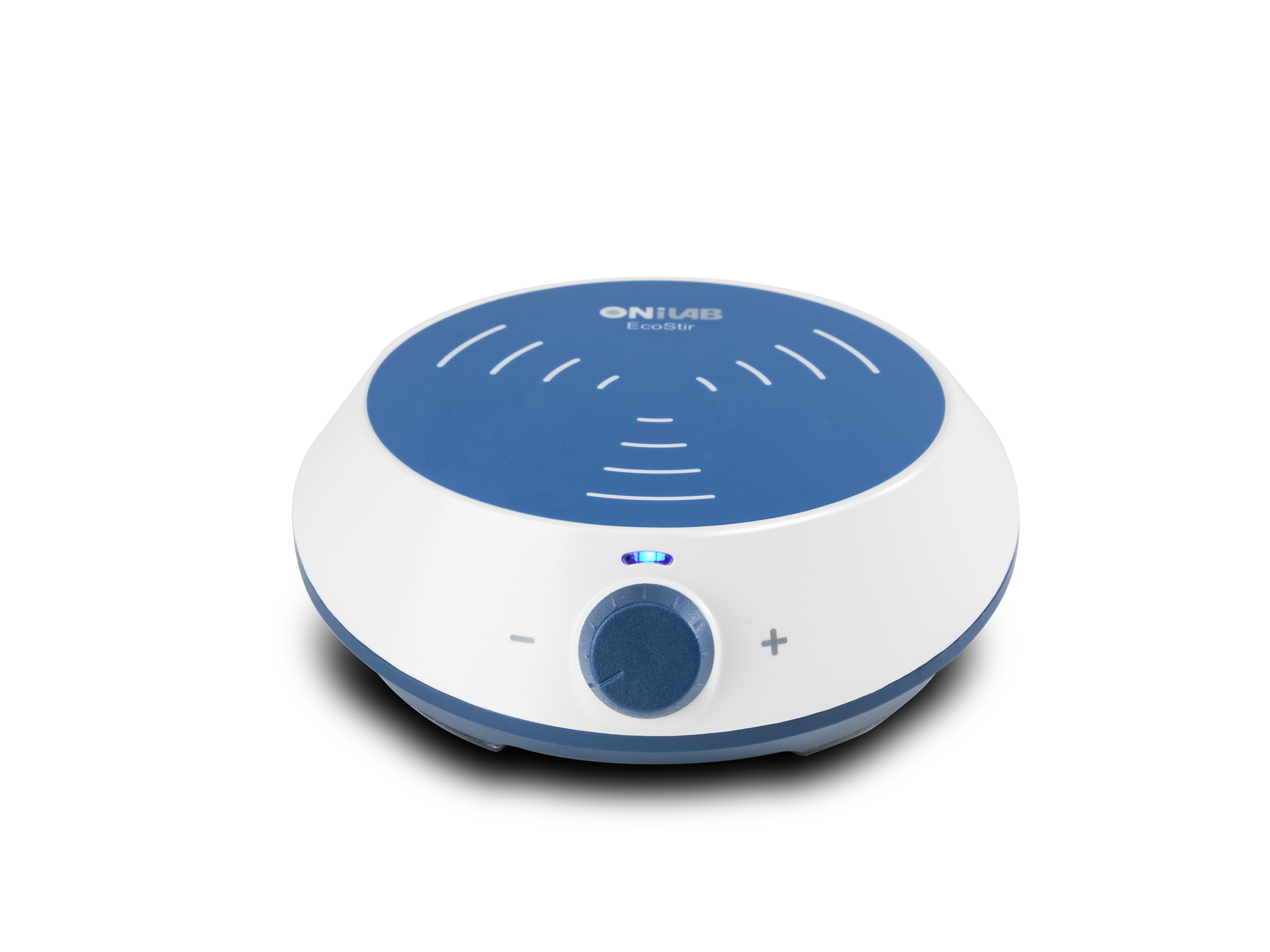

EcoStir
/Magnetic Stirrers/
Key Features
• Maintenance freebrushless DC motor
• Rare earth magnets give powerful stirring
• Stepless speed regulation 300-2000rpm
• Ultra silence and vibration-free design.
• PET top provides excellent chemical resistance
• Shaft can be fitted with a PH sensor or sensors for other purposes
• Maintenance freebrushless DC motor
• Rare earth magnets give powerful stirring
• Stepless speed regulation 300-2000rpm
• Ultra silence and vibration-free design.
• PET top provides excellent chemical resistance
• Shaft can be fitted with a PH sensor or sensors for other purposes
Parameter
/Magnetic Stirrers/
| Specifications | EcoStir |
| Work plate Dimension | φ120mm |
| Work plate material | PET |
| Motor type | Brushless DC motor |
| Motor output power | 1.2W |
| Power | 7.2W |
| Voltage | 100-120/200-240V,50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 1.5L |
| Max. magnetic bar[length] | 40mm |
| Speed range | 300-2000rpm |
| Speed setting | scale |
| Protection class | IP21 |
| Dimension [W x D x H] | 150x145x50mm |
| Weight | 0.3kg |
| Permissible ambient temperature and humidity | 5-40°C,80%RH |
Number and accessory
/Magnetic Stirrers/
| Cat. No. | P/N | Descriptions | Power supply |
| 8050194000 | EcoStir | 3.5inch | Cn plug,100V-220V/50Hz/60Hz |
| 3.5inch | Euro plug,100V-220V/50Hz/60Hz |
