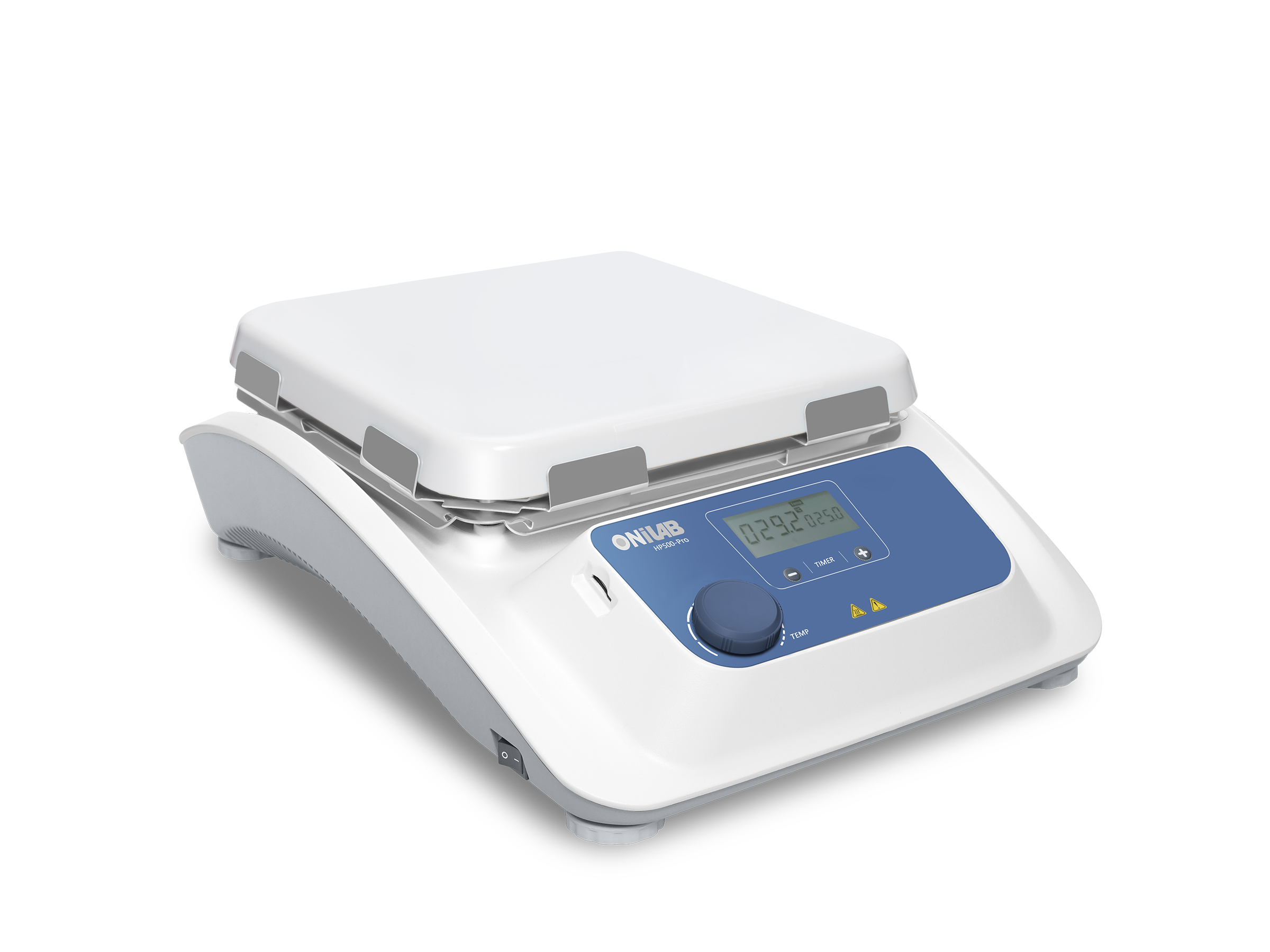

Key Features
· LCD screen shows temperature,Max. temperature up to 500℃
· 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
· External temperature control is possible by connecting the temperature sensor(PT 1000) with an accuracy at ±0.2°C
· The “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
· Heating temperature: room temperature ~ 500℃.
· Data connector : The SD card also records the instrument's running data in real time.
· Timing function: the running time of the instrument can be set.
Work plate Dimension [W x D] 254x254mm(10 inch)
Work plate material Glass ceramic
Heating position 1
Heating temperature range Room Temp.-500℃, increment 1℃
Temperature control accuracy ±1℃ (<100℃)±1%(>100℃)
Safety temperature 540℃
Temperature,time display LCD
Timer function 1min-99h59min
Temperature display accuracy ±0.1℃
External temperature sensor PT1000(±0.2℃)
"Hot" warning         50℃
Protection class IP21
Power 1400W
Heating output 1350W
Voltage Frequency 100-120/200-240V 50/60Hz
Dimension[WxDxH] 328x424x138mm
Weight 7.18kg
Permissible ambient temperature and humidity 5-40℃,80%RH
