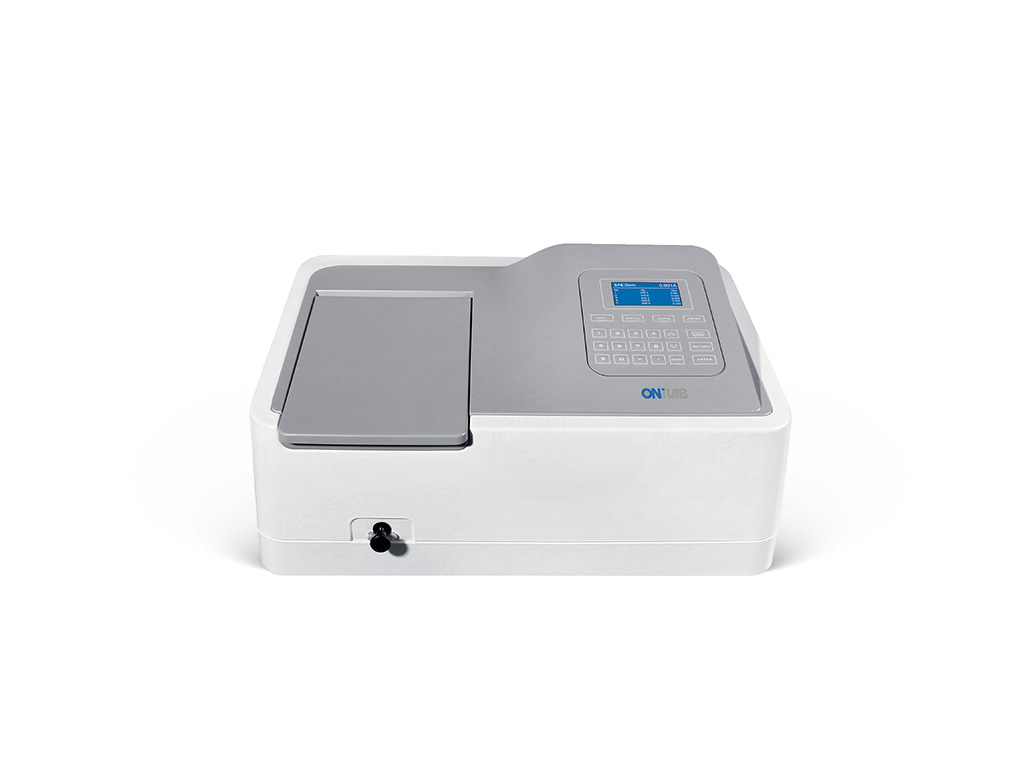

SP-UV1000
/Thermo Mix/
Key Features
- User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
- On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
- Data can be restored after a sudden power failure.
- Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
- Automatic Switching: Tungsten& Deuterium lamps switching is automatic. Selectable from a wavelength range of 190 to 1100nm.
- Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.
Parameter
/Thermo Mix/
| Specifications | SP-UV1000 |
| Optical Systen | Single Beam |
| Light Source |
Tungsten lamp& Deuterium lamp |
| Spectral Bandwidth | 4.0nm |
| Wavelength Range | 200-1000nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
| Photometric Range | -0.3-3.0A， 0-200%T |
| Photometric Accuracy |
±0.003A@0.5A, ±0.006A@1.0A ±0.5%T@100%T |
| Photometric Repeatability |
≤0.0015A@0.5A, ≤0.003A@1.0A, ≤0.25%T@100%T |
| Stability |
≤0.002A/h @500nm (after preheat 2 hours) |
| Stray Light | ≤0.2%T@220&360nm |
| Sample Compartment |
4-position,10mm pathlength cuvette |
| Display | LCD |
| Output | USB Port&Parallel Port (Printer) |
| Power | 110/220VAC, 50/60Hz,120W |
| Dimension (L×W×H) | 490×360×210mm |
| Weight | 12kg |
Number and accessory
/Thermo Mix/
| Cat. No. | P/N | Descriptions | Power supply |
| 4050110100 | SP-UV1000 | 200~1000nm Tungsten lamp &Deuterium lamp, including 4 glass square cuvettes and 2 quartz square cuvettes(package contain) |
110/220 V AC, 50/60 Hz, 80 W |
| Cat. No. | Descriptions |
| 18900331 | 4-cell holder for 10mm squ.cuvette |
| 18900332 | 4-cell holder for 10mm to 50mm squ.cuvette(A) |
| 18900333 | 4-cell holder for up to 100mm squ.cuvette(A) |
| 18900334 | cylindrical cell holder (ø16mm) (A) |
| 18900335 | 10mm water-jacketed 1-cell holder (A) |
| 18900336 | 10mm water-jacketed 4-cell holder (A) |
| 18900337 | Micro cell holder |
| 18900338 | Test tube holder (ø8-Ø22mm)(A) |
| 18900339 | Solid sample holder (δ1.5mm--3mm，1-POSITION)(A) |
| 18900340 | 8-position auto cell changer |
| 18900341 | 12V20W Halogen lamp（PHILIPS） |
| 18900342 | MILAS DEUTERIUM LAMP10V300mA 30W |
| 18900364 | Professional software |
| 18900368 | Square Cvettes.Glass 10mm , set/4 pcs |
| 18900369 | Square Cvettes.Glass 20mm, set/4 pcs |
| 18900370 | Square Cvettes.Glass 30mm, set/4 pcs |
| 18900371 | Square Cvettes.Glass 50mm, set/4 pcs |
| 18900372 | Square Cvettes.Glass 100mm, set/4 pcs |
| 18900373 | Square Cvettes.Glass 1mm, set/4 pcs |
| 18900374 | Square Cvettes.Glass 2mm, set/4 pcs |
| 18900375 | Square Cvettes.Glass 3mm, set/4 pcs |
| 18900376 | Square Cvettes.Glass 5mm, set/4 pcs |
| 18900377 | Square Cvettes.Quartz 10mm, set/2 pcs |
| 18900378 | Square Cvettes.Quartz 20mm, set/2 pcs |
| 18900379 | Square Cvettes.Quartz 30mm, set/2 pcs |
| 18900380 | Square Cvettes.Quartz 50mm, set/2 pcs |
| 18900381 | Square Cvettes.Quartz 100mm, set/2 pcs |
| 18900382 | Square Cvettes.Quartz 1mm, set/2 pcs |
| 18900383 | Square Cvettes.Quartz 2mm, set/2 pcs |
| 18900384 | Square Cvettes.Quartz 3mm, set/2 pcs |
| 18900385 | Square Cvettes.Quartz 5mm, set/2 pcs |
