D2012-Plus
/High Speed Micro-Centrifuges/
Key Features
- Powerful centrifugal force of 15100xg and max. speed of 15000rpm ideal for various applications
- Brushless DC motor drive quickly accelerates the rotor to set speed
- Quiet working, Low noise ≤56dB
- D2012 is proven by IEC/EN 61010-1
- D2012 Plus passed the rigorous explosion-proof test and accredited with CE, cTUVus, FCC certificates, and MCA test. MCA test according to IEC/EN61010-2-20
Parameter
/High Speed Micro-Centrifuges/
| Speed range | 500-15000rpm, increment: 100rpm |
| RCF range | Up to 15100×g, increment: 100×g |
| Speed accuracy | ±20rpm |
| Rotor capacity | 0.2mL/0.5mL/1.5mL/2mL×12 |
| Time setting range | 30sec-99min/Continuous |
| Motor type | Brushless DC motor |
| Safety mechanism | Door interlock, Overspeed detection, Overheat detection, Error code runtime display |
| Power | Single-phase, AC100V-240V, 50Hz/60Hz, 3A 100W |
| Noise level | ≤54dB |
| Acceleration /Braking time | 11s↑/9s↓ |
| Dimension[D×W×H] | 255×245×140mm |
| Weight | 6kg |
| Certification | EMC, CE, FCC, ICES, cTÜVus, CB |
| Additional features | Speed/RCF switch, Pulse operation (instantaneous centrifugation), Buzzer notification & alert |
Number and accessory
/High Speed Micro-Centrifuges/
| Cat. No. | P/N | Descriptions | Power supply |
| 9052002121 | D2012 plus | High Speed Mini Centrifuge (CE marked), with A12-2P plastic rotor kit（select 19400010）(package contain in the box) | US plug, 100-240V/50Hz/60Hz |
| Cn plug, 100-240V/50Hz/60Hz | |||
| Euro plug, 100-240V/50Hz/60Hz | |||
| UK plug, 100-240V/50Hz/60Hz |
| Cat. No. | P/N | Descriptions |

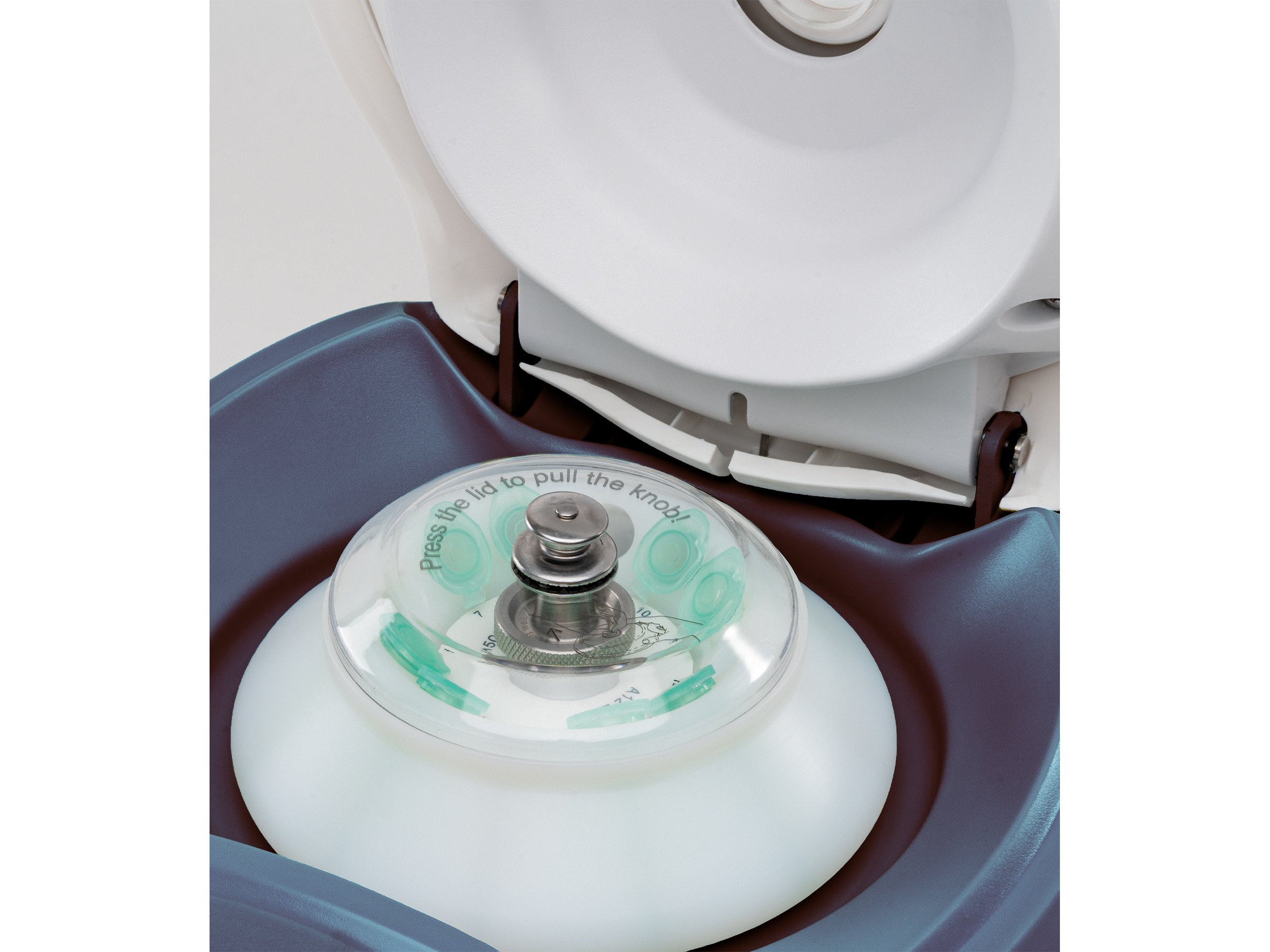

| 19400010 | A12-2P | Plastic rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 2ml*12, used with D2012 plus |
| 19500001 | A02P2 | 2ml to 0.2ml rotor adapter, used with A12-2, A12-2P, AS24-2 and A24-2P rotors，24pcs/pk |
| 19500002 | A05P2 | 2ml to 0.5ml rotor adapter, used with A12-2, A12-2P, AS24-2 and A24-2P rotors，24pcs/pk |
