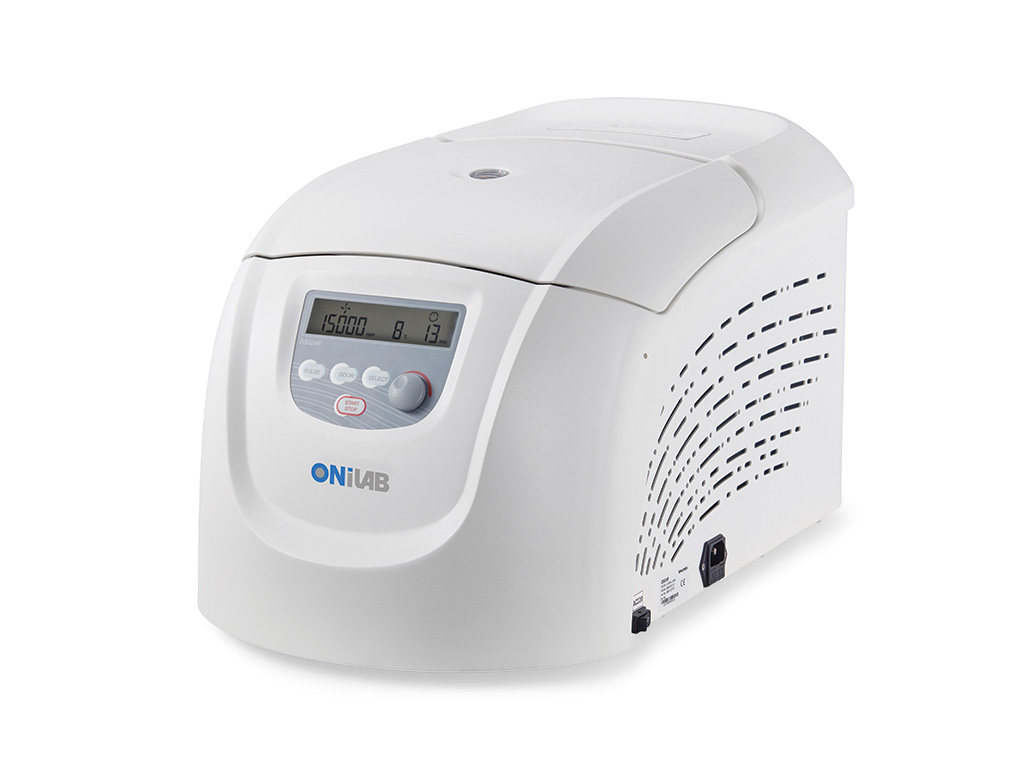

D3024R
/High Speed Micro-Centrifuges/

Key Features


       Powerful cooling system for precise temperature control


  • Pre-cooling program ensures optimal protection of the sample before warming
  • Guaranteed 7°C cooling within only 7 minutes of both chamber and samples even at maximum speed and capacity utilization
  • Sound-alert allows your undivided attention on other tasks warming
  • Lid  lock  facility  allows  for  internal temperature  maintenance  even after  centrifugation
  • Intermittent temperature control mode, CFC-free refrigerant and low carbon life rotor capacity
  • There-layer sealed rotor accidental leakage during centrifugal process allowing risk-free microbial contamination
  • High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
  • Four rotors are optional complete with 24 place 1.5/2.0mL tubes,bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with the use of adapters
  • Quiet running, noise level ≤ 54dB

Parameter
/High Speed Micro-Centrifuges/
Max. Speed 15000rpm(200-15000rpm), increment:10rpm
Max. RCF 21380×g,  increment:10×g
Speed Accuracy ±20 rpm
Temperature Range -20oC-40oC
Rotor Capacity 5mL×18, 5mL culture tubex12 0.2mL/0.5mL/1.5mL/ 2mL×24,
0.5mL×36, PCR8×4
Run Time 30sec-99min/Continuous
Motor Brushless DC moto
Safety Devices Dual door interlock, Over-speed  detection,
Over-temperature detection
Automatic internal diagnosis
Power Single-phase,
AC220V-240V, 50Hz/60Hz, 10A, AC110V-120V, 50Hz/60Hz, 10A 400W
Acceleration
/Braking time [Sec]		 25s↑25s↓
Dimension [D×W×H] 338×580×324mm
Weight 30kg
Certification CE cTÜVus FCC MCA
Advanced Features Speed/RCF switch; Short-time run function; sound-alert function

Number and accessory
/High Speed Micro-Centrifuges/
Cat. No. P/N Descriptions Power supply
9053101121 D3024R High Speed Refrigerated Micro-Centrifuge，with AS24-2 aluminum alloy rotor kit 19400006 (package contain in the box) US plug, 110-120V/50Hz/60Hz
Cn plug, 220-240V/50Hz/60Hz
Euro plug , 220-240V/50Hz/60Hz
UK plug, 220-240V/50Hz/60Hz

Cat. No. P/N Descriptions
19400012 AS18-5 Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 5ml*18, used with D3024 & D3024R
19400032 AS12-5V Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 5ml*12(eppendrof tube), used with D3024 & D3024R
19400006 AS24-2 Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 2ml/1.5ml*24, used with D3024 & D3024R
19400007 AS36-05 Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 0.5ml*36, used with D3024 & D3024R
19400008 AS4-PCR8 Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm,  4*PCR8, used with D3024 & D3024R
19500001 A02P2 2ml to 0.2ml rotor adapter, used with A12-2, A12-2P, AS24-2 and A24-2P rotors，24pcs/pk
19500002 A05P2 2ml to 0.5ml rotor adapter, used with  A12-2, A12-2P, AS24-2 and A24-2P rotors，24pcs/pk
19500003 A02P05 0.5ml to 0.2ml rotor adapter, used with AS36-05 rotor，36pcs/pk
