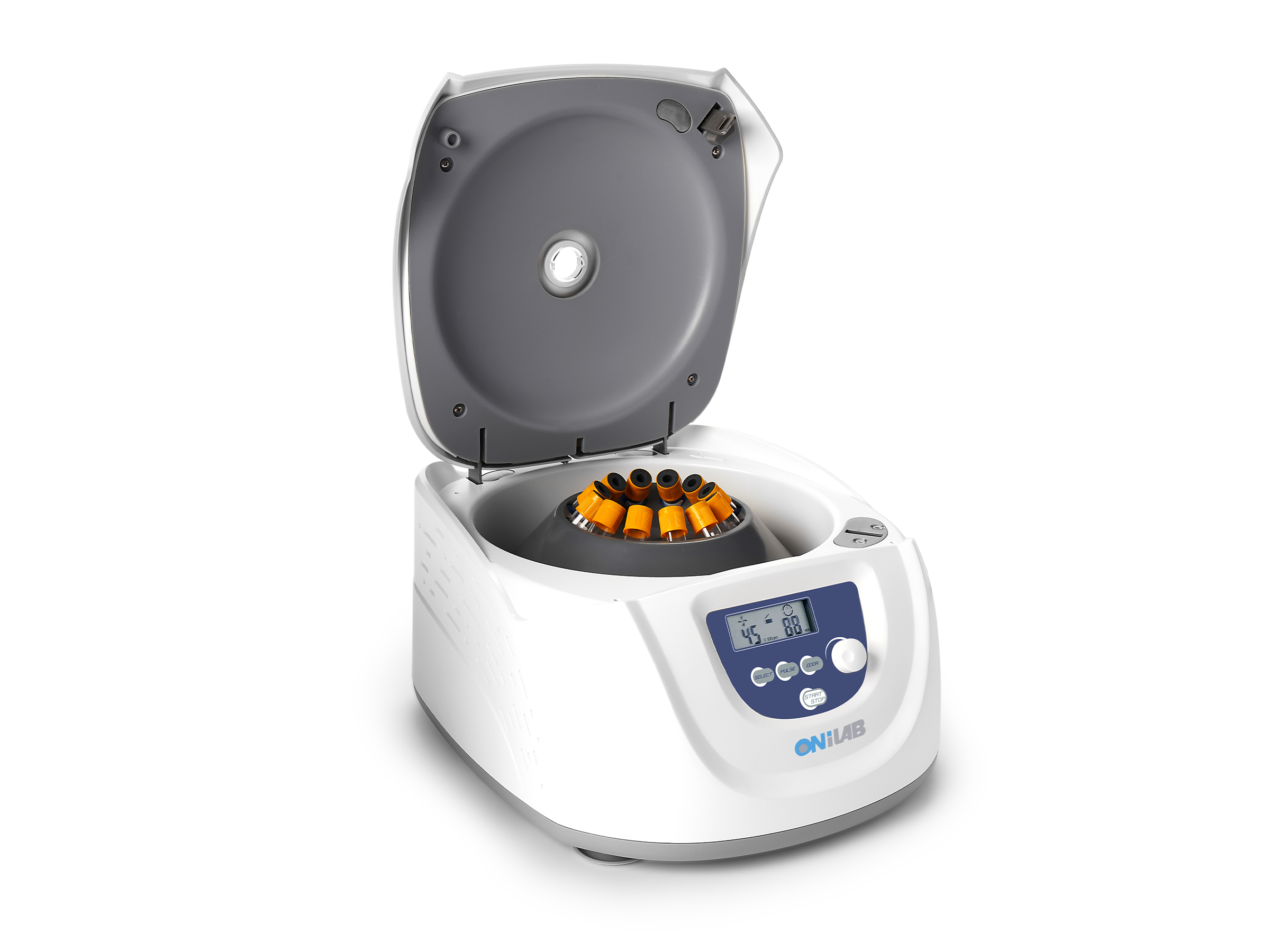

DM0412
/Low Speed Centrifuges/

Key Features

  • Easy programming to achieve high accuracy of speed control
  • Easy operation with intuitive menu and easy-to-read display
  • Rotor speed can be set and displayed by RPM or G-force
  • Maintenance-free brushless DC motors
  • Quick spin function with press and hold pulse key
  • Lid with electric lock and automatic release function saves processing time and prevents samples overheating
  • Automatic self-diagnosis on startup showing accumulative running time and last running parameters
  • Braking time 2 gears adjustable(for A6-50P rotor)
  • A12-10P and A6-50P are not interchangeable
Parameter
/Low Speed Centrifuges/
Specifications DM0412
Speed Range 300-4500rpm,increment: 100rpm
Max. RCF 2490×g
Speed accuracy ±20rpm
Rotor type A12-10P
Time setting range 30sec-99min
HOLD(Continuous operation)
Motor type Brushless DC motor
Display LCD
Safety Devices Door interlock,Overspeed detector; Error code runtime display
Acceleration
/Braking time
A12-10P:20s↑13s↓
Power Single-phase,
110V-240V,50Hz/60Hz, 3A
70W
Dimension [D×W×H] 301×354×217mm
Weight 6kg
Certification CE, cTÜVus
Additional Features Speed/RCF switch; Pulse operation(instantaneous centrifuge);Buzzer notification&alert

Number and accessory
/Low Speed Centrifuges/
Cat. No. P/N Descriptions Power supply
9054002122 DM0412 Clinical Centrifuge, including A12-10P rotor and both adapter A10P15&A10P15 plug(package contain in the box) US plug, 110-240V/50Hz/60Hz
Cn plug, 110-240V/50Hz/60Hz
Euro plug, 110-240V/50Hz/60Hz
UK plug, 110-240V/50Hz/60Hz

Cat. No. P/N Descriptions
19400068 A12-10P Plastic rotor, 4500rpm, 15ml*8, used with DM0412DM0412S
19400027 A10P15 Rotor adapter, used with A12-10P, 12pcs/pk
19400028 A10P15 plug Rotor adapter plug, used with A10P15, 12pcs/pk
