dflow

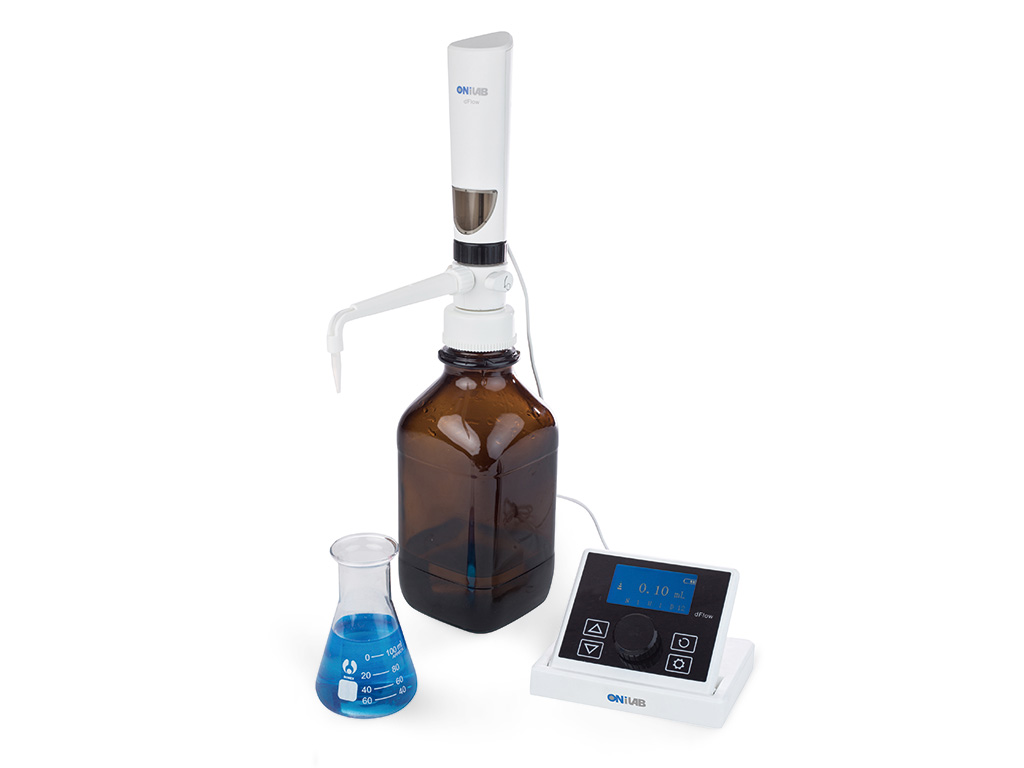

/Electronic Bottle Top Dispense/

Key Features

Motor operation minimizes the grip force
Electronic control decreases the repetitive strain injury
Remote control panel prevents manual disturbance during operation
Two Dispensing modes:

Dispenser
Stepper function

Parameter

/Electronic Bottle Top Dispense/

Specifications	dFlow
VolumeRange	0.1-99.9mL, Max piston lift is 10mL, resolution is 100μL
Volume Accuracy	Dispenser: R = 10mL ±30μL; CV = 10ml ±10μL Stepper: R = 1mL ±6μL; CV = 1ML ±9μL
Operating Temperature Range	10oC-30℃
Quality Control	DIN EN ISO 8655
Contro Type	External control

Number and accessory

/Electronic Bottle Top Dispense/

Cat. No.	Volume		Power supply
7052300001	Digital Bottle Top Dispenser 0.01-99.99ml		USA plug,100V-220V/50Hz/60Hz
			Cn plug,100V-220V/50Hz/60Hz
			Euro plug,100V-220V/50Hz/60Hz
			UK plug,100V-220V/50Hz/60Hz

Accessories

17000490

6x4mm Filling tube（m）
